Features
● High density packaging with a pitch of 2.54mm(0.1 inch) max. is possible.
This series requires less space and has greater EMI suppression effects.
● Different types with the same shape are available.
● Excellent in physical properties,such as terminal strength,flexure strength,
soldering resistance and soderability.
● Applicable to both flow and reflow soldering.
● High impedance cover wide frequency ranges.
● Operating temperature:-40℃ ~ +125℃(Including self-temperature).
Applications
● Computers and peripheral devices,personal computers,VCR and cameras.
● Noise suppression in digital equipments,car stereo,car engines controllers
and OA electronic instruments.
● Communication equipment.
1 Product Identi fication
⑴ ：Type
⑵ ：Dimensions
⑶ ：Material Code
⑷ ：Impedance
⑸ ：Rated Current

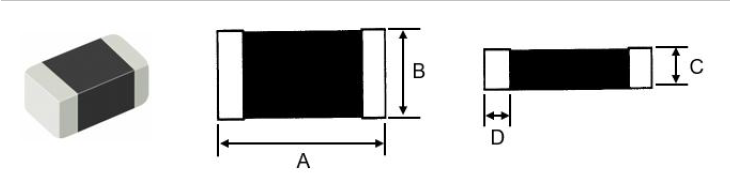

2 Shapes and Dimensions（Unit:mm）
| TYPE | A | B | C | D |
|---|---|---|---|---|
| YI100505 | 1.00±0.15 | 0.50±0.15 | 0.50±0.15 | 0.25±0.15 |
| YI160808 | 1.60±0.20 | 0.80±0.20 | 0.80±0.20 | 0.30±0.20 |
| YI201209 | 2.00±0.20 | 1.20±0.20 | 0.90±0.20 | 0.50±0.30 |
| YI321609 | 3.20±0.20 | 1.60±0.20 | 0.90±0.20 | 0.50±0.30 |
| YI322513 | 3.2±0.20 | 2.5±0.20 | 1.3±0.20 | 0.5±0.3 |
| YI451616 | 4.5±0.20 | 1.6±0.20 | 1.6±0.20 | 0.5±0.3 |
| YI453215 | 4.5±0.20 | 3.2±0.20 | 1.5±0.20 | 0.5±0.3 |
| YI565030 | 5.59±0.20 | 5.08±0.25 | 3.05±0.25 | 0.76±0.25 |
YI160808 Series
| Part Number | Impedance (Ω) | Test Freq. (MHz) | DCR Max. (Ω) | Rated Current Max. (mA) |
|---|---|---|---|---|
| YI160808U100-3R0T | 10±25% | 100 | 0.03 | 3000 |
| YI160808U100-5R0T | 10±25% | 100 | 0.01 | 5000 |
| YI160808U300-3R0T | 30±25% | 100 | 0.03 | 3000 |
| YI160808U300-5R0T | 30±25% | 100 | 0.02 | 5000 |
| YI160808U600-3R0T | 60 ±25% | 100 | 0.04 | 3000 |
YI160808 Series
| Part Number | Impedance (Ω) | Test Freq. (MHz) | DCR Max. (Ω) | Rated Current Max. (mA) |
|---|---|---|---|---|
| YI160808Z101-3R0T | 100 ±25% | 100 | 0.03 | 3000 |
| YI160808U121-2R5T | 120 ±25% | 100 | 0.10 | 2500 |
| YI160808U121-3R0T | 120 ±25% | 100 | 0.05 | 3000 |
| YI160808U181-2R0T | 180 ±25% | 100 | 0.15 | 2000 |
| YI160808U221-2R0T | 220 ±25% | 100 | 0.15 | 2000 |
| YI160808U301-2R0T | 300±25% | 100 | 0.10 | 2000 |
| YI160808U601-1R0T | 600±25% | 100 | 0.20 | 1000 |
| YI160808U601-2R0T | 600±25% | 100 | 0.10 | 2000 |
| YI160808MU102-0R8T | 1000 ±25% | 100 | 0.450 | 800 |
YI201209 Series
| Part Number | Impedance (Ω) | Test Freq. (MHz) | DCR Max. (Ω) | Rated Current Max. (mA) |
|---|---|---|---|---|
| YI201209B070-3R0T | 7±25% | 100 | 0.03 | 3000 |
| YI201209B070-6R0T | 7±25% | 100 | 0.01 | 6000 |
| YI201209U110-6R0T | 11±25% | 100 | 0.01 | 6000 |
| YI201209U220-6R0T | 22±25% | 100 | 0.025 | 6000 |
| YI201209A300-10R0T | 30±25% | 100 | 0.003 | 10000 |
| YI201209U400-3R0T | 30±25% | 100 | 0.05 | 3000 |
| YI201209U600-1R0T | 60±25% | 100 | 0.10 | 1000 |
| YI201209Z600-6R0T | 60±25% | 100 | 0.02 | 6000 |
| YI201209U800-3R0T | 80 ±25% | 100 | 0.01 | 3000 |
| YI201209U800-6R0T | 80 ±25% | 100 | 0.01 | 6000 |
| YI201209U101-3R0T | 100 ±25% | 100 | 0.06 | 3000 |
| YI201209U101-6R0T | 100 ±25% | 100 | 0.02 | 6000 |
| YI201209U121-2R0T | 120 ±25% | 100 | 0.1 | 2000 |
YI201209 Series
| Part Number | Impedance (Ω) | Test Freq. (MHz) | DCR Max. (Ω) | Rated Current Max. (mA) |
|---|---|---|---|---|
| YI201209U121-2R5T | 120 ±25% | 100 | 0.04 | 2500 |
| YI201209U121-4R0T | 120 ±25% | 100 | 0.05 | 4000 |
| YI201209U121-5R0T | 120 ±25% | 100 | 0.03 | 5000 |
| YI201209U201-4R0T | 200 ±25% | 100 | 0.035 | 4000 |
| YI201209U221-3R0T | 220 ±25% | 100 | 0.03 | 3000 |
| YI201209U301-2R0T | 300 ±25% | 100 | 0.01 | 2000 |
| YI201209U301-3R0T | 300 ±25% | 100 | 0.05 | 3000 |
| YI201209U601-2R0T | 600 ±25% | 100 | 0.15 | 2000 |
| YI201209U601-2R5T | 600 ±25% | 100 | 0.10 | 2500 |
| YI201209U471-3R0T | 470 ±25% | 100 | 0.055 | 3000 |
| YI201209Z102-1R5T | 1500 ±25% | 100 | 0.12 | 1500 |
| YI201209U152-1R0T | 1500 ±25% | 100 | 0.30 | 1000 |
YI321611 Series
| Part Number | Impedance (Ω) | Test Freq. (MHz) | DCR Max. (Ω) | Rated Current Max. (mA) |
|---|---|---|---|---|
| YI321611B100-6R0T | 10 ±25% | 100 | 0.015 | 6000 |
| YI321611B190-6R0T | 19 ±25% | 100 | 0.015 | 6000 |
| YI321611U260-6R0T | 26 ±25% | 100 | 0.010 | 6000 |
| YI321611U300-6R0T | 30±25% | 100 | 0.010 | 6000 |
| YI321611U300-8R0T | 30±25% | 100 | 0.005 | 8000 |
| YI321611U500-3R0T | 50±25% | 100 | 0.025 | 3000 |
| YI321611A500-12R0T | 50±25% | 100 | 0.0019 | 12000 |
| YI321611U600-6R0T | 60±25% | 100 | 0.015 | 6000 |
| YI321611U800-4R0T | 80±25% | 100 | 0.030 | 4000 |
| YI321611G800-6R0T | 80±25% | 100 | 0.015 | 6000 |
| YI321611U101-4R0T | 100 ±25% | 100 | 0.03 | 4000 |
| YI321611U121-4R0T | 120 ±25% | 100 | 0.04 | 3000 |
| YI321611Z121-6R0T | 120 ±25% | 100 | 0.02 | 6000 |
| YI321611U151-4R5T | 150 ±25% | 100 | 0.02 | 4500 |
| YI321611U221-4R5T | 330 ±25% | 100 | 0.02 | 4500 |
| YI321611U221-3R0T | 330 ±25% | 100 | 0.05 | 3000 |
| YI321611U301-3R0T | 330 ±25% | 100 | 0.05 | 3000 |
| YI321611U391-3R0T | 390 ±25% | 100 | 0.05 | 3000 |
| YI321611U501-3R0T | 500 ±25% | 100 | 0.06 | 3000 |
| YI321611U601-3R0T | 600 ±25% | 100 | 0.06 | 3000 |
| YI321611A601-3R0T | 600 ±25% | 100 | 0.035 | 4000 |
| YI321611U102-2R0T | 1000 ±25% | 100 | 0.20 | 2000 |
YI322513 Series
| Part Number | Impedance (Ω) | Test Freq. (MHz) | DCR Max. (Ω) | Rated Current Max. (mA) |
|---|---|---|---|---|
| YI322513U000-5R0T | 0~15Ω | 100 | 0.05 | 5000 |
| YI322513U300-3R0T | 30 ±25% | 100 | 0.05 | 3000 |
| YI322513U300-10R0T | 30 ±25% | 100 | 0.0016 | 10000 |
| YI322513U600-4R0T | 30 ±25% | 100 | 0.03 | 4000 |
| YI322513U600-6R0T | 30 ±25% | 100 | 0.02 | 6000 |
| YI322513U151-5R0T | 30 ±25% | 100 | 0.02 | 5000 |
YI451616 Series
| Part Number | Impedance (Ω) | Test Freq. (MHz) | DCR Max. (Ω) | Rated Current Max. (mA) |
|---|---|---|---|---|
| YI451616U600-6R0T | 60 ±25% | 100 | 0.01 | 6000 |
| YI451616U750-8R0T | 75 ±25% | 100 | 0.01 | 8000 |
| YI451616U800-6R0T | 80 ±25% | 100 | 0.015 | 6000 |
| YI451616U121-6R0T | 120 ±25% | 100 | 0.02 | 6000 |
| YI451616U181-3R0T | 180 ±25% | 100 | 0.025 | 3000 |
YI453215 Series
| Part Number | Impedance (Ω) | Test Freq. (MHz) | DCR Max. (Ω) | Rated Current Max. (mA) |
|---|---|---|---|---|
| YI453215U700-8R0T | 70 ±25% | 100 | 0.010 | 8000 |
| YI453215U800-8R0T | 80 ±25% | 100 | 0.010 | 8000 |
| YI453215U101-8R0T | 100 ±25% | 100 | 0.010 | 8000 |
| YI453215U121-8R0T | 120 ±25% | 100 | 0.010 | 8000 |
| YI453215F121-8R0T | 120 ±25% | 100 | 0.006 | 9000 |
| YI453215F131-8R0T | 130 ±25% | 100 | 0.010 | 8000 |
| YI453215B881-4R0T | 880 ±25% | 100 | 0.035 | 4000 |
YI565030 Series
| Part Number | Impedance (Ω) | Test Freq. (MHz) | DCR Max. (Ω) | Rated Current Max. (mA) |
|---|---|---|---|---|
| YI565030G801-8R0T | 800 ±25% | 100 | 0.010 | 8000 |

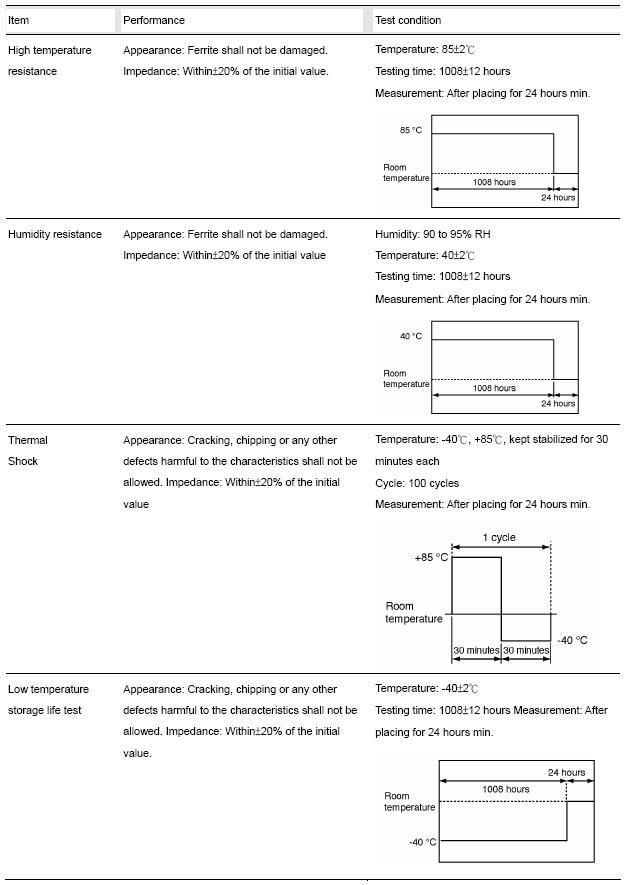

Reliability test
| No. | Items | Requirements | Test Methods and Remarks |
|---|---|---|---|
| 1 | Operating Temperature Range | -55℃～+125℃ | Includes product surface temperature rise |
| 2 | Solder ability | No mechanical damage. 95% (75% for 0603 series) or more of electrode area shall be coated by new solder. | Preheating temperature: 120℃ to 150℃ Preheating time: 60s Solder: 99.3%Sn/0.3%Ag/0.5%Cu of the Sn solder 0603 series; 200℃±5℃ Immersion depth: 1mm Duration: 3±0.5s Dip performance to a flux of about 3～5 s |
| 3 | Resistance to Soldering Heat | No mechanical damage. Inductance: Impedance change: within ±30% |
Preheating temperature: 120℃ to 150℃ Preheating time: 60s Solder: 99.3%Sn/0.3%Ag/0.5%Cu of the Sn solder 0603 series; 200℃±5℃ Immersion depth: 1mm Duration: 10±1s Dip performance to a flux of about 3～5 s |
| Adhesion of electrode | The termination and body should be no damage. | Applied force: 2N force for 0603 series；6N force for 1005 series；7N force for 1008 series；10N force for 2012, 3216 series；2012513 |
|
| Low temperature resistance | No mechanical damage. Impedance change: within ±30% |
Temperature: -55±2℃ Testing time: 1000±1h |
|
| Bending strength | No mechanical damage | Testing board: glass epoxy – resin substrate For (1±0.5) mm/s compression speed, curvature: 2mm; Hold time202513 |
|
| Vibration | No mechanical damage. Impedance change: within ±30% |
Amplitude: A period of 1.5mm Test time duration: 2h in each of 3 mutually perpendicular directions. Frequency range: 10Hz to 55Hz to 10Hz for 1min. |
|
| High temperature resistance | No mechanical damage. Impedance change: within ±30% |
Temperature: 125±2℃ Testing time: 1000±1h |
|
| Static Humidity | No mechanical damage. Impedance change: within ±30% |
Humidity: 80% to 95% RH Temperature: 60±2℃ Testing time: 1000±1h |
|
| High temperature load | No mechanical damage. Impedance change: within ±30% |
Impose current at room Testing time: 1000±1h Temperature: 85±2℃ |
|
| Temperature Shock | No mechanical damage. Impedance change: within ±30% |
Temperature: -55℃ for 30±3min / +125℃ for 30±3min Number of cycles: 100 Note: When there are questions concerning, measurement shall be made after 24±2h of recovery under the standard condition. |

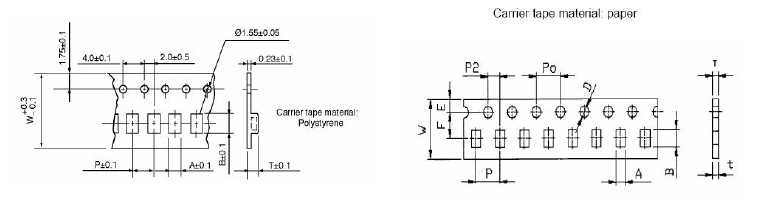

Taping Dimensions(Unit:mm) Material:Paper

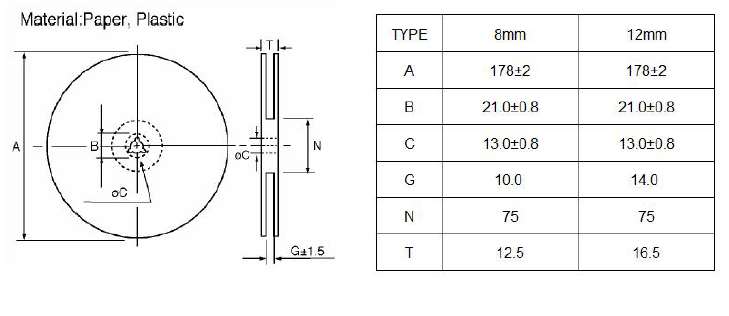

Reel Dimensions(Unit:mm)

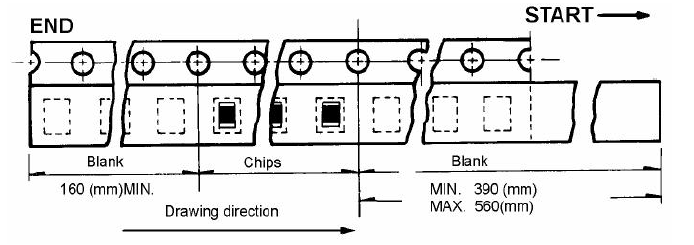

Direction of rolling
