Features
. Assemblage design,sturdy structure.
. High inductance,high current,low magnetic loss,low ESR,small parasitic
capacitance.
. Flat wire winding,achieve alow D.C.Resistance.
. Temperature rise current and saturation current is less influenced by
environment.
.Operating temperature range:-40℃ ~+125℃.
Applications
·Low profile,high current power supplies
·Battery powered devices
·DC/DC converters in distributed power systems
·DC/DC converters for field programmable gate array
High current inductors

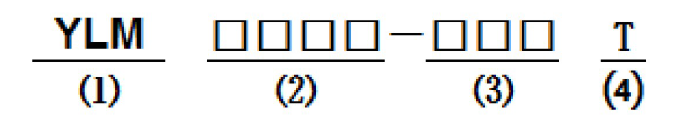

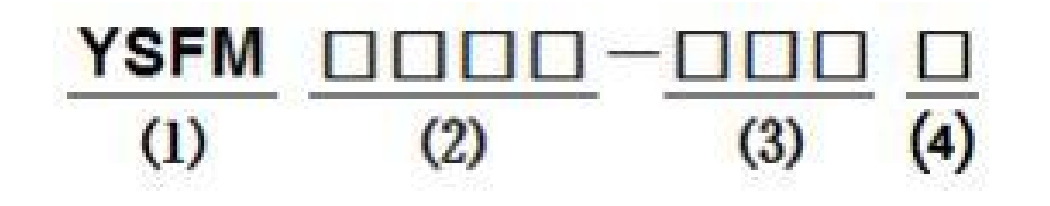

1 Product Identi fication
. Type
. Dimensions
. Impedance Taping

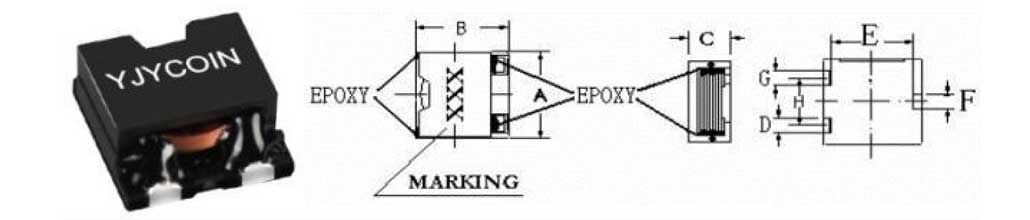

2 Shapes and Dimensions（Unit:mm）
| TYPE | A | B | C Max | D | E TyP. | F | G | H |
| YSFM1250 | 12.5+0.4 | 12.5+0.4 | 5.6 | 2.6+0.2 | 9 | 2.5+0.2 | 2.6+0.2 | 7.0+0.2 |
| YSFM1480 | 14.9Max | 15.0Max | 8.1 | 2.8+0.2 | 10.5 | 2.3+0.2 | 2.8+0.2 | 9.0+0.5 |
YLM 4520 Series
| Part Number | L(uH) | Test Freg. | DCR Max.(M 2) | Isat (A) | Irms(A) |
| YSFM1480-R70M | 0.7+20% | 100KHz/0.25V | 3 | 40 | 19 |
| YSFM1480-1R8M | 1.8+20% | 100KHz/0.25V | 3.9 | 30 | 18 |
| YSFM1480-2R2M | 2.2+20% | 100KHz/0.25V | 3.9 | 25 | 18 |
| YSFM1480-3R1M | 3.1+20% | 100KHz/0.25V | 3.9 | 18 | 18 |
| YSFM1480-4R7M | 4.7+20% | 100KHz/0.25V | 3.9 | 15 | 18 |
| YSFM1480-6R1M | 6.1+20% | 100KHz/0.25V | 8 | 15 | 12 |
| YSFM1480-100M | 10+20% | 100KHz/0.25V | 10 | 10 | 10 |
| YSFM1480-150M | 15+20% | 100KHz/0.25V | 10 | 0 | 10 |
| YSFM1480-220M | 22+20% | 100KHz/0.25V | 24 | 6 | 6 |
| YSFM1250-4R7M | 4.7+20% | 100KHz/0.25V | 5.4 | 8 | 9 |
Handle High Current with Low Loss
Designed with optimized magnetic materials and structure, these inductors can carry large currents while minimizing core and copper losses.
Excellent Thermal Performance
Advanced design enables efficient heat dissipation and reliable performance under high-temperature environments.
Supports continuous operation without saturation or degradation.
Compact and Efficient Design
High current capacity packed into small form factors, saving PCB space.
Delivers high efficiency, meeting the needs of miniaturization in modern electronics.
