Features
.Molding Inductor
.Low Profile, Low Temp.
. Large Current（Over 15A）。
. Customize For Different Need.
.Operating temperature：-40°C~+125C.
Applications
. General Electronic.
.Video Device,TV,TFT.
. Power Module for PC.
.NB/Lap Top Computer.. Server,VGA Card/Module.

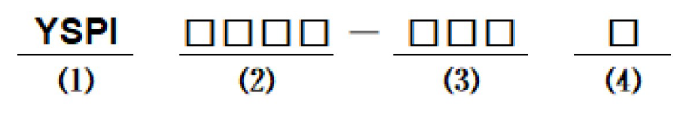

1 Product Identi fication
·Type
.Dimensions
. Inductance value
·Inductance Tolerance；N=±30%，M=±20%，K=±10%

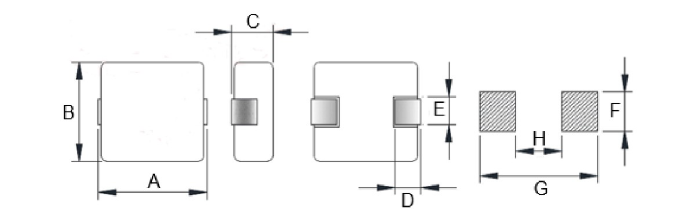

2 Shapes and Dimensions（Unit:mm）
| TYPE | A | B | C Max. | D | E | F Ref. | G Ref. | H Ref. |
|---|---|---|---|---|---|---|---|---|
| YSPI0415 | 4.4±0.5 | 4.2±0.3 | 1.5 | 1.0±0.3 | 1.5±0.5 | 2.3 | 4.9 | 2.1 |
| YSPI0420 | 4.4±0.5 | 4.2±0.3 | 2.0 | 1.0±0.3 | 1.5±0.5 | 2.3 | 4.9 | 2.1 |
| YSPI0515 | 5.4±0.5 | 5.2±0.5 | 1.5 | 1.0±0.3 | 2.0±0.5 | 2.5 | 7.0 | 3.0 |
| YSPI0520 | 5.4±0.5 | 5.2±0.5 | 2.0 | 1.0±0.3 | 2.0±0.5 | 2.5 | 7.0 | 3.0 |
| YSPI0530 | 5.4±0.5 | 5.2±0.5 | 3.0 | 1.0±0.3 | 2.0±0.5 | 2.5 | 7.0 | 3.0 |
| YSPI0550 | 5.4±0.5 | 5.2±0.5 | 5.0 | 1.0±0.3 | 2.0±0.5 | 2.5 | 7.0 | 3.0 |
| YSPI0640 | 6.5±0.5 | 6.0±0.5 | 4.0 | 2.5±0.3 | 1.3±0.3 | 3.2 | 7.3 | 3.5 |
| YSPI0718 | 7.3±0.5 | 6.6±0.5 | 1.8 | 1.5±0.5 | 3.0±0.3 | 3.4 | 7.3 | 3.7 |
| YSPI0720 | 7.3±0.5 | 6.6±0.5 | 2.0 | 1.5±0.5 | 3.0±0.3 | 3.4 | 7.3 | 3.7 |
| YSPI0724 | 7.3±0.5 | 6.6±0.5 | 2.4 | 1.5±0.5 | 3.0±0.3 | 3.4 | 7.3 | 3.7 |
| YSPI0730 | 7.3±0.5 | 6.6±0.5 | 3.0 | 1.5±0.5 | 3.0±0.3 | 3.4 | 7.3 | 3.7 |
| YSPI0740 | 7.3±0.5 | 6.6±0.5 | 4.0 | 1.5±0.5 | 3.0±0.3 | 3.4 | 7.3 | 3.7 |
| YSPI0750 | 7.3±0.5 | 6.6±0.5 | 5.0 | 1.5±0.5 | 3.0±0.3 | 3.4 | 7.3 | 3.7 |
| YSPI0850 | 7.8±0.5 | 7.2±0.3 | 5.0 | 1.6±0.3 | 3.0±0.3 | 3.5 | 9.6 | 3.5 |
| YSPI1040 | 11.5±0.5 | 10.0±0.5 | 4.0 | 2.0±0.5 | 3.0±0.5 | 4.1 | 13.6 | 5.4 |
| YSPI1045 | 11.5±0.5 | 10.0±0.5 | 4.5 | 2.0±0.5 | 3.0±0.5 | 4.1 | 13.6 | 5.4 |
| YSPI1050 | 11.5±0.5 | 10.0±0.5 | 5.0 | 2.0±0.5 | 3.0±0.5 | 4.1 | 13.6 | 5.4 |
| YSPI1335 | 13.8±0.5 | 12.6±0.5 | 3.5 | 2.5±0.5 | 3.5±0.5 | 4.5 | 14.5 | 8.0 |
| YSPI1340 | 13.8±0.5 | 12.6±0.5 | 4.0 | 2.5±0.5 | 3.5±0.5 | 4.5 | 14.5 | 8.0 |
| YSPI1350 | 13.8±0.5 | 12.6±0.5 | 5.0 | 2.5±0.5 | 3.5±0.5 | 4.5 | 14.5 | 8.0 |
| YSPI1365 | 13.8±0.5 | 12.6±0.5 | 6.5 | 2.5±0.5 | 3.5±0.5 | 4.5 | 14.5 | 8.0 |
YSPI0415 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI0415-R47□ | 0.47 | 20 | 27 | 5.0 | 9.0 |
| YSPI0415-1R0□ | 1.0 | 39 | 50 | 4.0 | 7.0 |
| YSPI0415-1R5□ | 1.5 | 48 | 63 | 4.0 | 6.0 |
| YSPI0415-2R2□ | 2.2 | 66 | 86 | 3.0 | 4.0 |
| YSPI0415-3R3□ | 3.3 | 110 | 145 | 2.0 | 3.5 |
| YSPI0415-4R7□ | 4.7 | 197 | 246 | 1.5 | 3.0 |
YSPI 0420 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI0420-R10□ | 0.11 | 5.5 | 8.0 | 12.0 | 25.0 |
| YSPI0420-R22□ | 0.22 | 6.3 | 12.0 | 10.0 | 14.0 |
| YSPI0420-R33□ | 0.33 | 8.0 | 10.0 | 8.5 | 12.5 |
| YSPI0420-R47□ | 0.47 | 11.0 | 14.0 | 7.0 | 9.5 |
| YSPI0420-R56□ | 0.56 | 13.0 | 20.0 | 6.5 | 9.0 |
| YSPI0420-R68□ | 0.68 | 16.0 | 21.0 | 5.2 | 8.0 |
| YSPI0420-1R0□ | 1.0 | 21.0 | 28.0 | 4.5 | 7.0 |
| YSPI0420-1R2□ | 1.2 | 23.0 | 32.0 | 4.0 | 7.0 |
| YSPI0420-1R5□ | 1.5 | 28.0 | 38.0 | 4.0 | 7.0 |
| YSPI0420-2R2□ | 2.2 | 42.0 | 52.0 | 3.0 | 5.0 |
| YSPI0420-3R3□ | 3.3 | 60.0 | 79.0 | 2.5 | 4.0 |
| YSPI0420-4R7□ | 4.7 | 118 | 150 | 2.2 | 3.0 |
| YSPI0420-6R8□ | 6.8 | 130 | 170 | 2.0 | 2.5 |
| YSPI0420-8R2□ | 8.2 | 188 | 258 | 2.0 | 2.5 |
| YSPI0420-100□ | 10 | 225 | 294 | 1.6 | 2.0 |
| YSPI0420-220□ | 22 | 470 | 500 | 1.2 | 1.4 |
YSPI 0515 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI0515-1R0□ | 1.0 | 31 | 40 | 4.0 | 5.5 |
| YSPI0515-2R2□ | 2.2 | 35 | 42 | 3.5 | 4.5 |
| YSPI0515-3R3□ | 3.3 | 44 | 58 | 2.5 | 3.5 |
| YSPI0515-4R7□ | 4.7 | 156 | 200 | 2.0 | 3.0 |
YSPI 0520 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI0520-R47□ | 0.47 | 8 | 10 | 10.5 | 14.0 |
| YSPI0520-R68□ | 0.68 | 15 | 20 | 5.0 | 10.0 |
| YSPI0520-1R0□ | 1.0 | 15 | 21 | 5.0 | 8.0 |
| YSPI0520-1R2□ | 1.2 | 17 | 27 | 5.0 | 8.0 |
| YSPI0520-1R5□ | 1.5 | 20 | 26 | 5.5 | 6.5 |
| YSPI0520-2R2□ | 2.2 | 32 | 42 | 4.0 | 6.0 |
| YSPI0520-3R3□ | 3.3 | 44 | 58 | 3.5 | 5.5 |
| YSPI0520-4R7□ | 4.7 | 68 | 90 | 3.2 | 4.5 |
| YSPI0520-5R6□ | 5.6 | 75 | 97 | 3.0 | 4.0 |
| YSPI0520-6R8□ | 6.8 | 107 | 125 | 2.8 | 3.4 |
| YSPI0520-100□ | 10 | 170 | 221 | 2.3 | 3.0 |
YSPI 0530 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI0530-R20□ | 0.2 | 3.0 | 3.9 | 13.0 | 14.5 |
| YSPI0530-R33□ | 0.33 | 5.0 | 7.0 | 10.0 | 15.0 |
| YSPI0530-R47□ | 0.47 | 8.0 | 14.0 | 10.0 | 14.0 |
| YSPI0530-R68□ | 0.68 | 11.0 | 18.0 | 8.0 | 14.0 |
| YSPI0530-1R0□ | 1.0 | 13.0 | 22.0 | 7.0 | 11.0 |
| YSPI0530-1R2□ | 1.2 | 14.0 | 23.0 | 6.5 | 11.0 |
| YSPI0530-1R5□ | 1.5 | 20.0 | 25.0 | 6.0 | 10.0 |
| YSPI0530-2R2□ | 2.2 | 26.5 | 40.0 | 5.0 | 8.0 |
| YSPI0530-3R3□ | 3.3 | 30.0 | 42.0 | 4.5 | 7.0 |
| YSPI0530-4R7□ | 4.7 | 46.0 | 60.0 | 4.0 | 6.0 |
| YSPI0530-5R6□ | 5.6 | 62.0 | 80.0 | 3.0 | 4.0 |
| YSPI0530-6R8□ | 6.8 | 78.0 | 108 | 3.0 | 5.0 |
| YSPI0530-100□ | 10 | 115 | 150 | 2.5 | 4.5 |
| YSPI0530-150□ | 15 | 190 | 265 | 2.1 | 2.5 |
| YSPI0530-220□ | 22 | 230 | 270 | 2.0 | 2.0 |
YSPI 0550 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI0550-2R2□ | 2.2 | 18 | 24 | 5.0 | 8.0 |
| YSPI0550-6R8□ | 6.8 | 58 | 70 | 3.0 | 5.4 |
| YSPI0550-100□ | 10 | 80 | 103 | 2.5 | 4.5 |
| YSPI0550-150□ | 15 | 140 | 180 | 2.0 | 4.0 |
| YSPI0550-220□ | 22 | 180 | 230 | 1.5 | 2.5 |
| YSPI0550-330□ | 33 | 345 | 445 | 1.5 | 2.0 |
| YSPI0550-470□ | 47 | 404 | 527 | 1.0 | 2.0 |
| YSPI0550-560□ | 56 | 456 | 600 | 0.8 | 1.0 |
YSPI 0640 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| TYP. | Max. | ||||
| YSPI0640-150□ | 15 | 96 | 120 | 3.0 | 4.0 |
| YSPI0640-180□ | 18 | 120 | 160 | 2.5 | 3.0 |
| YSPI0640-220□ | 22 | 140 | 180 | 2.5 | 3.0 |
| YSPI0640-470□ | 47 | 265 | 345 | 1.5 | 2.5 |
YSPI 0718 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI0718-R10□ | 0.1 | 2.1 | 2.5 | 20.5 | 33.0 |
| YSPI0718-R22□ | 0.22 | 3.2 | 3.5 | 22.0 | 24.0 |
| YSPI0718-R47□ | 0.47 | 8.9 | 10.0 | 10.0 | 18.0 |
| YSPI0718-R68□ | 0.68 | 11.0 | 12.0 | 9.5 | 17.0 |
| YSPI0718-1R0□ | 1.0 | 22.0 | 30.0 | 7.0 | 9.0 |
| YSPI0718-1R5□ | 1.5 | 25.8 | 28.0 | 5.9 | 9.0 |
| YSPI0718-2R2□ | 2.2 | 41.0 | 55.0 | 5.0 | 7.0 |
| YSPI0718-3R3□ | 3.3 | 60.0 | 68.0 | 5.0 | 7.0 |
| YSPI0718-4R7□ | 4.7 | 61.5 | 70.0 | 4.0 | 5.0 |
| YSPI0718-6R8□ | 6.8 | 101 | 110 | 2.9 | 3.5 |
| YSPI0718-100□ | 10 | 137 | 155 | 2.3 | 4.0 |
| YSPI0718-220□ | 22 | 300 | 350 | 1.8 | 2.3 |
YSPI 0720 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI0720-R36□ | 0.36 | 7 | 9 | 14.0 | 20.0 |
| YSPI0720-R68□ | 0.68 | 11 | 14 | 8.0 | 18.0 |
| YSPI0720-1R0□ | 1.0 | 16 | 21 | 7.0 | 14.0 |
| YSPI0720-1R5□ | 1.5 | 17 | 20 | 7.0 | 10.0 |
| YSPI0720-2R2□ | 2.2 | 33 | 43 | 5.0 | 9.0 |
| YSPI0720-3R3□ | 3.3 | 44 | 57 | 4.0 | 8.0 |
| YSPI0720-4R7□ | 4.7 | 70 | 91 | 3.5 | 5.0 |
| YSPI0720-5R6□ | 5.6 | 89 | 118 | 3.0 | 4.5 |
| YSPI0720-6R8□ | 6.8 | 100 | 120 | 2.5 | 4.0 |
| YSPI0720-8R2□ | 8.2 | 168 | 217 | 2.2 | 3.5 |
| YSPI0720-100□ | 10 | 188 | 224 | 2.0 | 3.5 |
YSPI 0724 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI0724-R22□ | 0.22 | 3 | 4 | 21.0 | 34.0 |
| YSPI0724-R33□ | 0.33 | 4 | 5 | 18.0 | 22.5 |
| YSPI0724-R47□ | 0.47 | 6 | 7 | 15.0 | 22.0 |
| YSPI0724-1R0□ | 1.0 | 12 | 15 | 9.0 | 16.0 |
| YSPI0724-1R5□ | 1.5 | 19 | 23 | 8.0 | 15.0 |
| YSPI0724-2R2□ | 2.2 | 20 | 25 | 7.0 | 14.0 |
| YSPI0724-3R3□ | 3.3 | 35 | 43 | 5.5 | 10.0 |
| YSPI0724-4R7□ | 4.7 | 39 | 50 | 5.0 | 7.0 |
| YSPI0724-6R8□ | 6.8 | 62 | 70 | 4.0 | 6.0 |
| YSPI0724-100□ | 10 | 91 | 101 | 3.1 | 4.0 |
| YSPI0724-150□ | 15 | 152 | 160 | 2.5 | 3.3 |
YSPI 0730 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI0730-R10□ | 0.1 | 1.5 | 1.7 | 32.5 | 60.0 |
| YSPI0730-R15□ | 0.15 | 1.9 | 2.5 | 26.0 | 52.0 |
| YSPI0730-R22□ | 0.22 | 2.3 | 2.9 | 23.0 | 40.0 |
| YSPI0730-R33□ | 0.33 | 3.2 | 4.2 | 20.0 | 33.0 |
| YSPI0730-R47□ | 0.47 | 3.6 | 5.5 | 16.5 | 27.0 |
| YSPI0730-R56□ | 0.56 | 4.3 | 5.7 | 16.5 | 25.5 |
| YSPI0730-R68□ | 0.68 | 5.7 | 7.4 | 15.5 | 25 |
| YSPI0730-R82□ | 0.82 | 6.7 | 8.0 | 13.0 | 24.0 |
| YSPI0730-1R0□ | 1.0 | 9.0 | 10.0 | 12.0 | 22.0 |
| YSPI0730-1R5□ | 1.5 | 10.5 | 15.0 | 9.5 | 18.0 |
| YSPI0730-2R2□ | 2.2 | 12.5 | 20.0 | 8.5 | 14.0 |
| YSPI0730-3R3□ | 3.3 | 20.0 | 35.0 | 6.0 | 12.0 |
| YSPI0730-4R7□ | 4.7 | 28.0 | 40.0 | 5.5 | 9.0 |
| YSPI0730-5R6□ | 5.6 | 34.0 | 45.0 | 5.5 | 8.0 |
| YSPI0730-6R8□ | 6.8 | 40.0 | 60.0 | 4.5 | 7.0 |
| YSPI0730-8R2□ | 8.2 | 54.0 | 68.0 | 4.5 | 6.0 |
| YSPI0730-100□ | 10 | 60.0 | 102 | 4.0 | 5.5 |
| YSPI0730-150□ | 15 | 98.0 | 122 | 3.0 | 5.0 |
| YSPI0730-220□ | 22 | 130 | 145 | 3.0 | 3.2 |
| YSPI0730-330□ | 33 | 209 | 270 | 2.0 | 3.0 |
YSPI 0740 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI0740-1R0□ | 1.00 | 6.6 | 8.0 | 12.5 | 18.0 |
| YSPI0740-2R2□ | 2.2 | 11.0 | 18.0 | 9.0 | 12.0 |
| YSPI0740-3R3□ | 3.3 | 20.0 | 25.0 | 7.0 | 8.0 |
| YSPI0740-4R7□ | 4.7 | 30.0 | 35.0 | 6.0 | 7.0 |
| YSPI0740-5R6□ | 5.6 | 36.5 | 38.0 | 5.7 | 8.0 |
| YSPI0740-6R8□ | 6.8 | 40.6 | 50.0 | 5.0 | 7.0 |
| YSPI0740-100□ | 10 | 51.5 | 62.0 | 4.5 | 5.0 |
| YSPI0740-150□ | 15 | 86.3 | 95.0 | 3.7 | 4.5 |
| YSPI0740-220□ | 22 | 107 | 125 | 3.0 | 4.0 |
| YSPI0740-330□ | 33 | 199 | 220 | 2.5 | 3.2 |
| YSPI0740-390□ | 39 | 244 | 280 | 2.2 | 2.8 |
| YSPI0740-470□ | 47 | 256 | 298 | 2.1 | 2.5 |
YSPI 0750 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI0750-R36□ | 0.36 | 3.2 | 3.5 | 21.0 | 25.0 |
| YSPI0750-R47□ | 0.47 | 3.6 | 3.8 | 20.0 | 21.0 |
| YSPI0750-R56□ | 0.56 | 3.4 | 3.6 | 20.0 | 26.0 |
| YSPI0750-R68□ | 0.68 | 3.9 | 4.2 | 16.0 | 18.0 |
| YSPI0750-R82□ | 0.82 | 4.6 | 4.9 | 15.0 | 17.0 |
| YSPI0750-1R0□ | 1.0 | 6.5 | 8.5 | 13.0 | 12.0 |
| YSPI0750-1R5□ | 1.5 | 8.5 | 12.0 | 10.0 | 10.0 |
| YSPI0750-2R2□ | 2.2 | 11.0 | 14.0 | 9.5 | 9.5 |
| YSPI0750-3R3□ | 3.3 | 18.0 | 22.0 | 8.5 | 9.0 |
| YSPI0750-4R7□ | 4.7 | 22.0 | 30.0 | 6.5 | 8.0 |
| YSPI0750-6R8□ | 6.8 | 33.0 | 45.0 | 5.5 | 7.0 |
| YSPI0750-100□ | 10 | 47.0 | 61.0 | 4.5 | 6.0 |
| YSPI0750-150□ | 15 | 77.0 | 95.0 | 3.1 | 4.0 |
| YSPI0750-220□ | 22 | 108 | 140 | 2.6 | 3.5 |
| YSPI0750-330□ | 33 | 160 | 210 | 2.3 | 3.0 |
| YSPI0750-470□ | 47 | 192 | 290 | 2.0 | 2.8 |
YSPI 0750 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI0750-R36□ | 0.36 | 3.2 | 3.5 | 21.0 | 25.0 |
| YSPI0750-R47□ | 0.47 | 3.6 | 3.8 | 20.0 | 21.0 |
| YSPI0750-R56□ | 0.56 | 3.4 | 3.6 | 20.0 | 26.0 |
| YSPI0750-R68□ | 0.68 | 3.9 | 4.2 | 16.0 | 18.0 |
| YSPI0750-R82□ | 0.82 | 4.6 | 4.9 | 15.0 | 17.0 |
| YSPI0750-1R0□ | 1.0 | 6.5 | 8.5 | 13.0 | 12.0 |
| YSPI0750-1R5□ | 1.5 | 8.5 | 12.0 | 10.0 | 10.0 |
| YSPI0750-2R2□ | 2.2 | 11.0 | 14.0 | 9.5 | 9.5 |
| YSPI0750-3R3□ | 3.3 | 18.0 | 22.0 | 8.5 | 9.0 |
| YSPI0750-4R7□ | 4.7 | 22.0 | 30.0 | 6.5 | 8.0 |
| YSPI0750-6R8□ | 6.8 | 33.0 | 45.0 | 5.5 | 7.0 |
| YSPI0750-100□ | 10 | 47.0 | 61.0 | 4.5 | 6.0 |
| YSPI0750-150□ | 15 | 77.0 | 95.0 | 3.1 | 4.0 |
| YSPI0750-220□ | 22 | 108 | 140 | 2.6 | 3.5 |
| YSPI0750-330□ | 33 | 160 | 210 | 2.3 | 3.0 |
| YSPI0750-470□ | 47 | 192 | 290 | 2.0 | 2.8 |
YSPI 0750 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI0750-R36□ | 0.36 | 3.2 | 3.5 | 21.0 | 25.0 |
| YSPI0750-R47□ | 0.47 | 3.6 | 3.8 | 20.0 | 21.0 |
| YSPI0750-R56□ | 0.56 | 3.4 | 3.6 | 20.0 | 26.0 |
| YSPI0750-R68□ | 0.68 | 3.9 | 4.2 | 16.0 | 18.0 |
| YSPI0750-R82□ | 0.82 | 4.6 | 4.9 | 15.0 | 17.0 |
| YSPI0750-1R0□ | 1.0 | 6.5 | 8.5 | 13.0 | 12.0 |
| YSPI0750-1R5□ | 1.5 | 8.5 | 12.0 | 10.0 | 10.0 |
| YSPI0750-2R2□ | 2.2 | 11.0 | 14.0 | 9.5 | 9.5 |
| YSPI0750-3R3□ | 3.3 | 18.0 | 22.0 | 8.5 | 9.0 |
| YSPI0750-4R7□ | 4.7 | 22.0 | 30.0 | 6.5 | 8.0 |
| YSPI0750-6R8□ | 6.8 | 33.0 | 45.0 | 5.5 | 7.0 |
| YSPI0750-100□ | 10 | 47.0 | 61.0 | 4.5 | 6.0 |
| YSPI0750-150□ | 15 | 77.0 | 95.0 | 3.1 | 4.0 |
| YSPI0750-220□ | 22 | 108 | 140 | 2.6 | 3.5 |
| YSPI0750-330□ | 33 | 160 | 210 | 2.3 | 3.0 |
| YSPI0750-470□ | 47 | 192 | 290 | 2.0 | 2.8 |
YSPI 0850 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI0850-2R2□ | 2.2 | 10 | 12 | 10.0 | 15.0 |
| YSPI0850-3R3□ | 3.3 | 15 | 20 | 8.0 | 12.0 |
| YSPI0850-4R7□ | 4.7 | 18 | 23 | 7.0 | 10.5 |
| YSPI0850-6R8□ | 6.8 | 23 | 30 | 5.5 | 9.0 |
| YSPI0850-8R2□ | 8.2 | 36 | 48 | 6.0 | 9.0 |
| YSPI0850-100□ | 10 | 39 | 50 | 4.8 | 7.0 |
| YSPI0850-220□ | 22 | 108 | 140 | 3.0 | 5.0 |
| YSPI0850-270□ | 27 | 140 | 182 | 3.0 | 4.0 |
| YSPI0850-330□ | 33 | 160 | 200 | 2.0 | 4.0 |
| YSPI0850-470□ | 47 | 206 | 247 | 2.0 | 3.0 |
| YSPI0850-560□ | 56 | 240 | 310 | 2.0 | 3.0 |
YSPI 1040 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI1040-R19□ | 0.19 | 0.70 | 0.80 | 38.0 | 60.0 |
| YSPI1040-R22□ | 0.22 | 0.60 | 0.80 | 35.0 | 45.0 |
| YSPI1040-R36□ | 0.36 | 1.70 | 2.20 | 34.0 | 42.0 |
| YSPI1040-R47□ | 0.47 | 2.60 | 3.30 | 33.0 | 38.0 |
| YSPI1040-R56□ | 0.56 | 2.60 | 3.30 | 25.0 | 33.0 |
| YSPI1040-R68□ | 0.68 | 2.70 | 3.50 | 27.0 | 30.0 |
| YSPI1040-1R0□ | 1.0 | 3.00 | 3.20 | 20.0 | 26.0 |
| YSPI1040-1R5□ | 1.5 | 3.80 | 4.30 | 16.0 | 22.0 |
| YSPI1040-2R2□ | 2.2 | 6.00 | 7.00 | 14.0 | 16.0 |
| YSPI1040-3R3□ | 3.3 | 10.80 | 11.80 | 11.0 | 12.0 |
| YSPI1040-4R7□ | 4.7 | 14.50 | 19.00 | 9.0 | 12.0 |
| YSPI1040-5R6□ | 5.6 | 20.00 | 23.00 | 7.5 | 14.0 |
| YSPI1040-6R8□ | 6.8 | 22.50 | 25.00 | 6.0 | 10.0 |
| YSPI1040-8R2□ | 8.2 | 25.00 | 30.00 | 6.0 | 9.0 |
| YSPI1040-100□ | 10 | 27.50 | 30.00 | 5.5 | 7.0 |
| YSPI1040-150□ | 15 | 53.00 | 70.00 | 5.2 | 6.0 |
| YSPI1040-220□ | 22 | 73.00 | 92.00 | 5.0 | 5.5 |
| YSPI1040-330□ | 33 | 136 | 177 | 3.2 | 5.0 |
| YSPI1040-470□ | 47 | 145 | 180 | 2.8 | 4.5 |
| YSPI1040-680□ | 68 | 176 | 195 | 2.5 | 2.6 |
| YSPI1040-101□ | 100 | 254 | 300 | 1.5 | 2.0 |
YSPI 1045 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI1045-1R0□ | 1.0 | 2.7 | 3.2 | 20.0 | 32.0 |
| YSPI1045-2R2□ | 2.2 | 5.8 | 7.2 | 14.0 | 16.0 |
| YSPI1045-3R3□ | 3.3 | 11.0 | 13.0 | 11.0 | 13.5 |
| YSPI1045-4R7□ | 4.7 | 13.2 | 15.0 | 10.0 | 13.0 |
| YSPI1045-5R6□ | 5.6 | 16.0 | 18.5 | 8.5 | 10.5 |
| YSPI1045-6R8□ | 6.8 | 21.5 | 29.0 | 4.0 | 9.0 |
| YSPI1045-220□ | 22 | 56.0 | 69.0 | 4.0 | 7.0 |
| YSPI1045-330□ | 33 | 77.0 | 101 | 3.0 | 5.0 |
| YSPI1045-470□ | 47 | 160 | 210 | 3.0 | 4.0 |
YSPI 1050 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI1040-R19□ | 0.19 | 0.70 | 0.80 | 38.0 | 60.0 |
| YSPI1040-R22□ | 0.22 | 0.60 | 0.80 | 35.0 | 45.0 |
| YSPI1040-R36□ | 0.36 | 1.70 | 2.20 | 34.0 | 42.0 |
| YSPI1040-R47□ | 0.47 | 2.60 | 3.30 | 33.0 | 38.0 |
| YSPI1040-R56□ | 0.56 | 2.60 | 3.30 | 25.0 | 33.0 |
| YSPI1040-R68□ | 0.68 | 2.70 | 3.50 | 27.0 | 30.0 |
| YSPI1040-1R0□ | 1.0 | 3.00 | 3.20 | 20.0 | 26.0 |
| YSPI1040-1R5□ | 1.5 | 3.80 | 4.30 | 16.0 | 22.0 |
| YSPI1040-2R2□ | 2.2 | 6.00 | 7.00 | 14.0 | 16.0 |
| YSPI1040-3R3□ | 3.3 | 10.80 | 11.80 | 11.0 | 12.0 |
| YSPI1040-4R7□ | 4.7 | 14.50 | 19.00 | 9.0 | 12.0 |
| YSPI1040-5R6□ | 5.6 | 20.00 | 23.00 | 7.5 | 14.0 |
| YSPI1040-6R8□ | 6.8 | 22.50 | 25.00 | 6.0 | 10.0 |
| YSPI1040-8R2□ | 8.2 | 25.00 | 30.00 | 6.0 | 9.0 |
| YSPI1040-100□ | 10 | 27.50 | 30.00 | 5.5 | 7.0 |
| YSPI1040-150□ | 15 | 53.00 | 70.00 | 5.2 | 6.0 |
| YSPI1040-220□ | 22 | 73.00 | 92.00 | 5.0 | 5.5 |
| YSPI1040-330□ | 33 | 136 | 177 | 3.2 | 5.0 |
| YSPI1040-470□ | 47 | 145 | 180 | 2.8 | 4.5 |
| YSPI1040-680□ | 68 | 176 | 195 | 2.5 | 2.6 |
| YSPI1040-101□ | 100 | 254 | 300 | 1.5 | 2.0 |
YSPI 1050 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI1050-R22□ | 0.22 | 0.58 | 0.80 | 30.0 | 55.0 |
| YSPI1050-R68□ | 0.68 | 2.10 | 3.00 | 20.0 | 40.0 |
| YSPI1050-1R0□ | 1.0 | 2.70 | 3.20 | 21.5 | 32.0 |
| YSPI1050-1R5□ | 1.5 | 3.50 | 4.20 | 16.0 | 23.0 |
| YSPI1050-2R2□ | 2.2 | 6.60 | 8.50 | 10.0 | 18.0 |
| YSPI1050-3R3□ | 3.3 | 10.60 | 13.30 | 8.0 | 16.0 |
| YSPI1050-4R7□ | 4.7 | 13.80 | 18.00 | 8.0 | 14.0 |
| YSPI1050-5R6□ | 5.6 | 14.00 | 18.00 | 8.0 | 14.0 |
| YSPI1050-6R8□ | 6.8 | 18.30 | 23.00 | 6.5 | 12.0 |
| YSPI1050-100□ | 10 | 19.30 | 25.00 | 6.0 | 11.0 |
| YSPI1050-150□ | 15 | 39.00 | 52.00 | 5.5 | 6.0 |
| YSPI1050-220□ | 22 | 73.00 | 92.00 | 4.0 | 6.0 |
| YSPI1050-330□ | 33 | 107.00 | 120.00 | 3.0 | 5.0 |
| YSPI1050-470□ | 47 | 160.00 | 210.00 | 3.0 | 4.0 |
| YSPI1050-680□ | 68 | 264.0 | 300.0 | 3.0 | 4.0 |
| YSPI1050-101□ | 100 | 320.0 | 400.0 | 2.0 | 3.0 |
YSPl 1335 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI1335-R22□ | 0.22 | 0.65 | 1.00 | 32 | 65 |
| YSPI1335-R33□ | 0.33 | 0.90 | 1.30 | 30 | 60 |
| YSPI1335-R39□ | 0.39 | 1.10 | 1.50 | 30 | 60 |
| YSPI1335-R47□ | 0.47 | 1.35 | 1.70 | 30 | 55 |
| YSPI1335-R56□ | 0.56 | 1.90 | 2.00 | 25 | 45 |
| YSPI1335-R68□ | 0.68 | 2.30 | 2.50 | 24 | 48 |
| YSPI1335-1R0□ | 1.0 | 3.30 | 3.50 | 22 | 45 |
| YSPI1335-1R5□ | 1.5 | 5.10 | 5.50 | 18 | 35 |
| YSPI1335-2R2□ | 2.2 | 7.00 | 8.00 | 16 | 29 |
| YSPI1335-3R3□ | 3.3 | 10.00 | 12.00 | 12 | 27 |
| YSPI1335-4R7□ | 4.7 | 17.00 | 18.00 | 11 | 20 |
| YSPI1335-5R6□ | 5.6 | 17.10 | 18.00 | 9 | 19 |
| YSPI1335-6R8□ | 6.8 | 19.80 | 22.00 | 9 | 18 |
| YSPI1335-8R2□ | 8.2 | 24.80 | 28.00 | 8 | 16 |
| YSPI1335-100□ | 10 | 30.40 | 34.00 | 7 | 14 |
YSPl 1340 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI1340-R22□ | 0.22 | 0.7 | 0.9 | 35 | 55 |
| YSPI1340-R33□ | 0.33 | 1.2 | 1.5 | 30 | 50 |
| YSPI1340-R47□ | 0.47 | 1.3 | 1.6 | 25 | 45 |
| YSPI1340-R68□ | 0.68 | 1.7 | 2.0 | 22 | 42 |
| YSPI1340-1R0□ | 1.0 | 2.9 | 3.5 | 20 | 38 |
| YSPI1340-1R5□ | 1.5 | 4.4 | 5.3 | 15 | 30 |
| YSPI1340-2R2□ | 2.2 | 4.4 | 5.3 | 12 | 20 |
| YSPI1340-3R3□ | 3.3 | 6.7 | 8.0 | 11 | 18 |
| YSPI1340-4R7□ | 4.7 | 14.6 | 17.5 | 10 | 16 |
| YSPI1340-6R8□ | 6.8 | 21.0 | 30.0 | 8 | 15 |
| YSPI1340-8R2□ | 8.2 | 22.0 | 31.0 | 6 | 13 |
| YSPI1340-100□ | 10 | 27.0 | 35.0 | 5 | 8 |
YSPl 1350 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI1350-R36□ | 0.36 | 0.72 | 1.70 | 35.0 | 7.0 |
| YSPI1350-R47□ | 0.47 | 1.60 | 2.50 | 30.0 | 60.0 |
| YSPI1350-R56□ | 0.56 | 2.30 | 3.50 | 25.0 | 45.0 |
| YSPI1350-R68□ | 0.68 | 2.50 | 4.00 | 24.0 | 44.0 |
| YSPI1350-R82□ | 0.82 | 2.70 | 4.50 | 22.0 | 42.0 |
| YSPI1350-1R0□ | 1.0 | 3.10 | 5.00 | 22.0 | 28.0 |
| YSPI1350-1R5□ | 1.5 | 3.70 | 8.00 | 15.0 | 24.0 |
| YSPI1350-2R2□ | 2.2 | 5.20 | 11.00 | 13.0 | 23.0 |
| YSPI1350-3R3□ | 3.3 | 6.90 | 10.00 | 12.0 | 20.0 |
| YSPI1350-4R7□ | 4.7 | 10.00 | 13.00 | 12.0 | 18.0 |
| YSPI1350-6R8□ | 6.8 | 13.10 | 17.00 | 9.0 | 14.0 |
| YSPI1350-100□ | 10 | 21.00 | 28.00 | 7.0 | 13.0 |
| YSPI1350-150□ | 15 | 32.00 | 41.00 | 6.0 | 9.0 |
| YSPI1350-220□ | 22 | 51.00 | 66.00 | 5.0 | 7.0 |
| YSPI1350-330□ | 33 | 65.00 | 84.00 | 5.0 | 5.5 |
| YSPI1350-470□ | 47 | 85.00 | 110.00 | 4.0 | 4.5 |
YSPl 1365 Series
| Part Number | Inductance (uH) @100KHz | DC Resistance (mΩ) | Heat Rating Current (A) | Saturation Current (A) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| YSPI1365-R22□ | 0.22 | 0.39 | 0.90 | 38.0 | 70.0 |
| YSPI1365-R36□ | 0.36 | 0.75 | 1.00 | 36.0 | 65.0 |
| YSPI1365-R80□ | 0.8 | 0.86 | 1.20 | 20.0 | 32.0 |
| YSPI1365-2R2□ | 2.2 | 4.70 | 6.10 | 17.0 | 26.0 |
| YSPI1365-3R3□ | 3.3 | 5.90 | 7.10 | 15.0 | 27.0 |
| YSPI1365-5R6□ | 5.6 | 9.00 | 11.00 | 12.0 | 24.0 |
| YSPI1365-7R8□ | 7.8 | 13.00 | 17.00 | 10.0 | 17.0 |
| YSPI1365-100□ | 10 | 15.50 | 18.00 | 8.0 | 12.0 |
| YSPI1365-220□ | 22 | 33.50 | 36.00 | 5.0 | 8.0 |
| YSPI1365-330□ | 33 | 48.00 | 57.00 | 4.0 | 6.0 |
| YSPI1365-470□ | 47 | 57.50 | 75.00 | 5.0 | 7.0 |
| YSPI1365-560□ | 56 | 74.00 | 95.00 | 3.0 | 4.5 |
| YSPI1365-680□ | 68 | 113.00 | 148.00 | 3.0 | 6.0 |
| YSPI1365-101□ | 100 | 240.0 | 310.0 | 2.5 | 4.0 |
| YSPI1365-151□ | 150 | 231.0 | 280.0 | 2.0 | 3.0 |
Excellent AC-DC superposition resistance.
Power products and audio amplifiers, video equipment, instruments and meters, set-top boxes;
Computer motherboards, PC graphics cards, VGA modules.
Digital circuits for automotive electronics, security systems, and portable devices;
DC/DC and DC/AC converters.
Other general electrical appliances.
Chip Wound Common Mode Inductor YLM3216- 222X
Common mode noise suppression for variable frequency signal lines, personal computers, and high-density assembled electronic devices.
General purpose ferrite chip beads YB100505G100
Used for filtering between clock generation circuits, analog and digital circuits, and I/O input/output connectors (such as serial and parallel ports, keyboards, mice, long-distance telecommunications, and local area networks). It also filters between radio frequency (RF) circuits and susceptible logic devices, and in power supply circuits. It also suppresses high-frequency conducted interference and EMI noise in computers, printers, video recorders (VCRs), television systems, and mobile phones.
Chip Wound Common Mode Inductor YLM3216- 900X
YLM3216-900Xa1 chip wound common-mode inductor, with excellent noise suppression at high frequencies. 2. YLM’s thin, low-profile design and excellent quality. 3. This product is lead-free and suitable for soldering.
Chip Wound Common Mode Inductor YLM2012- 300X
High-frequency common-mode impedance provides excellent noise suppression. 2. YLM’s thin, low-profile design demonstrates excellent quality. 3. This product is lead-free and suitable for soldering.
Shenzhen YIYCOIN Electronic Co
Establish a hundred years of foundation, the tree of the national brand！ Become happy employees and customers respect, domestic inductor industry, a
hundred years of enterprise！
Comprehensive Inductor Solutions
Our product portfolio covers SMD power inductors, one-piece molding inductors, SMD alloy inductors, high-current inductors, common-mode inductors, automotive-grade inductors, digital power amplifier inductors, high-current beads, and custom-made inductors.
YJYCOIN has long-term partnerships with more than 60 listed companies and has reached strategic cooperation with over 500+ world-renowned brands, becoming a trusted supplier in diverse industries.
Strong Manufacturing and Global Reach
With our operation center, production base, and business division, YJYCOIN delivers products to both domestic and international markets. Our inductors are widely used in consumer electronics, communication equipment, power electronics, automotive electronics, industrial control, IoT, new energy, energy storage, security, medical, and lighting industries.
Certified Quality Assurance
We have been awarded the IATF16949 Automotive Quality Management System Certification and the ISO9001:2015 Quality Management System Certification, ensuring that every product meets the highest standards of quality and reliability.
Trusted by Industry Leaders
YJYCOIN has long-term partnerships with more than 60 listed companies and has reached strategic cooperation with over 500+ world-renowned brands, becoming a trusted supplier in diverse industries.
Craftsmanship and Professional Service
Guided by Kazuo Inamori’s management philosophy, we pursue excellence with craftsmanship, professional products, and heartfelt service. We are committed to providing customers with international quality, efficient delivery, and one-stop solutions, ensuring peace of mind.
Mission and Vision
YJYCOIN strives to promote the development of domestic inductor brands, contribute to global technological advancement, and become a century-old enterprise respected by society, loved by customers, and cherished by employees.
